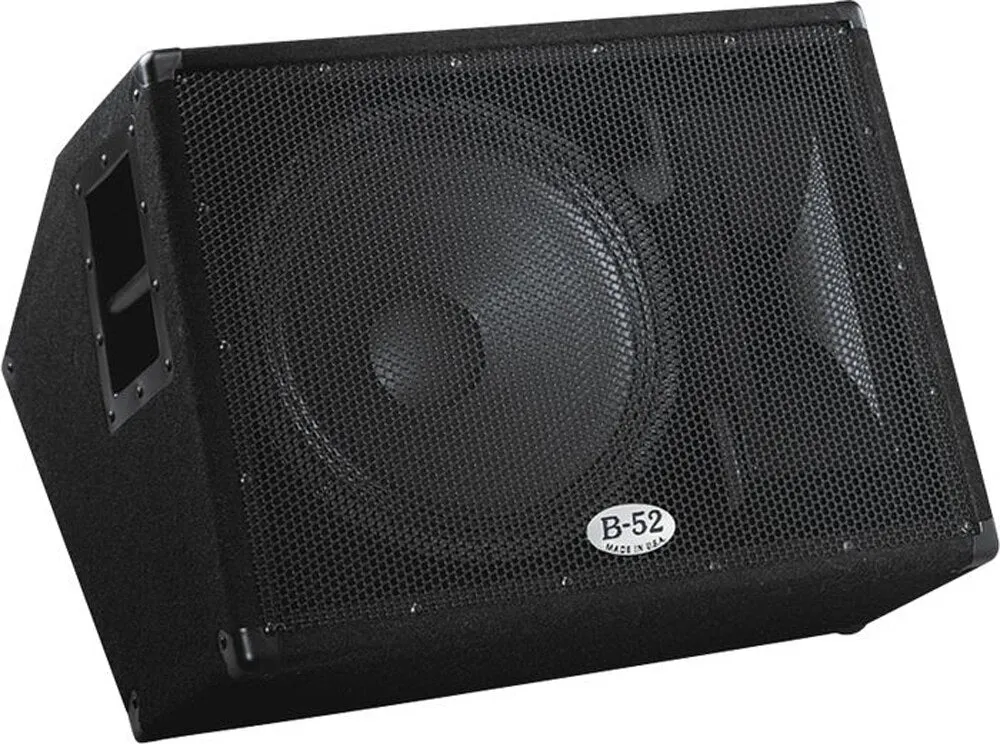

The PA-MN 12 is a compact and powerful stage monitor that delivers sound clarity that is not fatiguing to your ears. Components include a B-52 12-200 loudspeaker and a 1” exit titanium diaphragm compression driver.



• Made in the U.S.A.
• Cast-aluminum frames & vented magnet assemblies
• Titanium diaphragm compression drivers
• 13-ply Baltic birch construction
• Black paint finish
• Dual Neutrik™ NL4 Speakontm connectors
• High-temperature polyamide voice coils

The COMP-3300 compression driver features a 2” exit pure titanium diaphragm with an impregnated polymer fiber surround for high sensitivity, low distortion and a smooth extended frequency response. An optimized aluminum phase plug prevents phase cancellation problems. High flux density magnetic assembly with copper shorting ring lowers distortion and reduces the voice coil self-inductance. The compression driver’s base and cover are injected aluminum assuring high resistance.



All Architectural full-range cabinets include certified 3/8”- 16 TPI flying internal hardware





• Nominal Impedance: 8 Ohms
• Frequency Response: 50-19K Hz
• High-Freq. Dispersion: 60° x 40°
• X-Over Points: 1.6K Hz
• Power Handling: 650 watts
• SPL @ 1w1m: 97 dB
• Peak SPL: 128 dB
• Dimensions (W” x H” x D”): 25 x 15 x 17
• Weight (lbs): 48
