Product Details
＋
ELX112

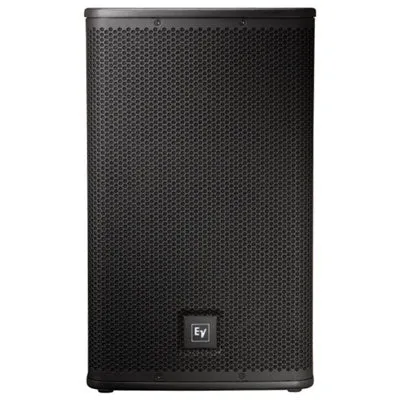

12" passive loudspeaker
- Compact power for sound reinforcement and stage monitoring
- EVS-12K woofer
- 1.5-inch DH-1K titanium HF compression driver
- 55 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide

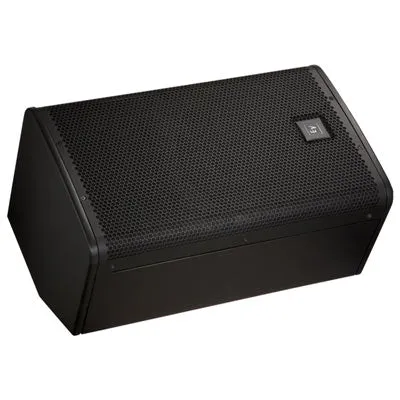

- 60° Monitor Angle
- 94 dB SPL sensitivity; 132 dB max SPL
- Power handling: 250 W continuous, 1000 W peak
- Braced 15mm plywood enclosure

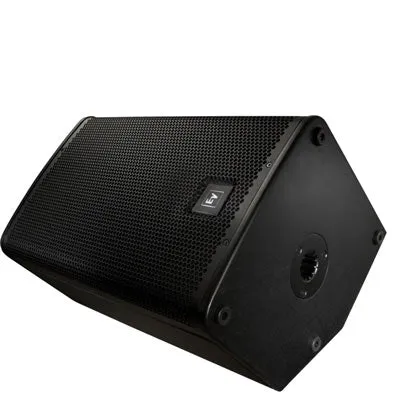

- Pole mount or stack with Live X Subwoofers
- Black textured finish
The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.
SPECIFICATIONS
| Freq. Response (-3 dB) | 82 Hz - 18 kHz¹ |
| Freq. Range (-10 dB) | 55 Hz - 20 kHz¹ |
| Axial Sensitivity | 94 dB |
| Max. Measured SPL³ | 132 dB |
| Recommended HP Freq. | 45 Hz |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Handling | 250W Continuous, 1000W Peak |

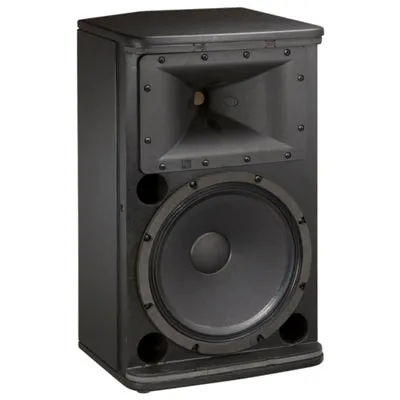

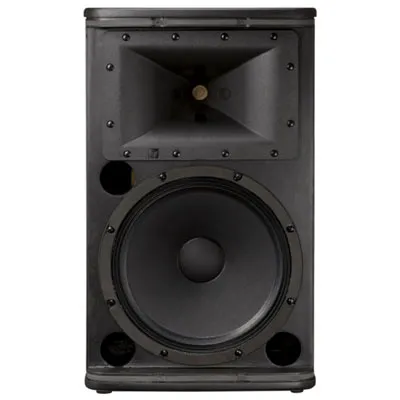

| LF Transducer(s) | (1) EVS-12K, 305mm (12") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 2.1 kHz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 7.0 Ohms |

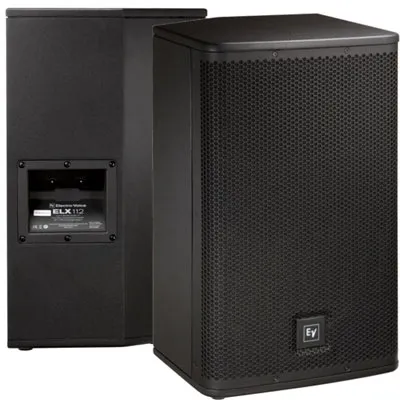

| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 607mm x 362mm x 340mm (23.89' x 14.25" x 13.41") |
| Net Weight | 16.0 kg (35.2 lbs) |
| Shipping Weight | 19.9 kg (43.8 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case ASP-1, Steel Subwoofer Stand |
² Half Space Measurement
³ Max SPL is measured at 1m using broadband pink noise at rated peak power rating.
RECOMMENDED AMPLIFIERS
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX112.
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
