The Nav-TV ZEN-AUDIO DSP6A-A2B processor seamlessly converts 2018 Ford factory A²B® (Automotive Audio Bus) to 6-channel analog RCA and TOSLink output. Adding aftermarket amplifiers to the OE B&O or Revel amplified SYNC3 system has never been so simple.

This module integrates directly with the OEM A²B® & CAN bus to retain volume control, full fade, and balance (analog only), treble, mid-range, bass control & Bluetooth voice calls with no external speaker (true OEM integration).

This is the integration unit we use in all of our Plug and Play Packages. For the nerds, this is why it costs more money over the other interface units (It has better sound quality)

Input - Digital Input A²B Twisted Pair

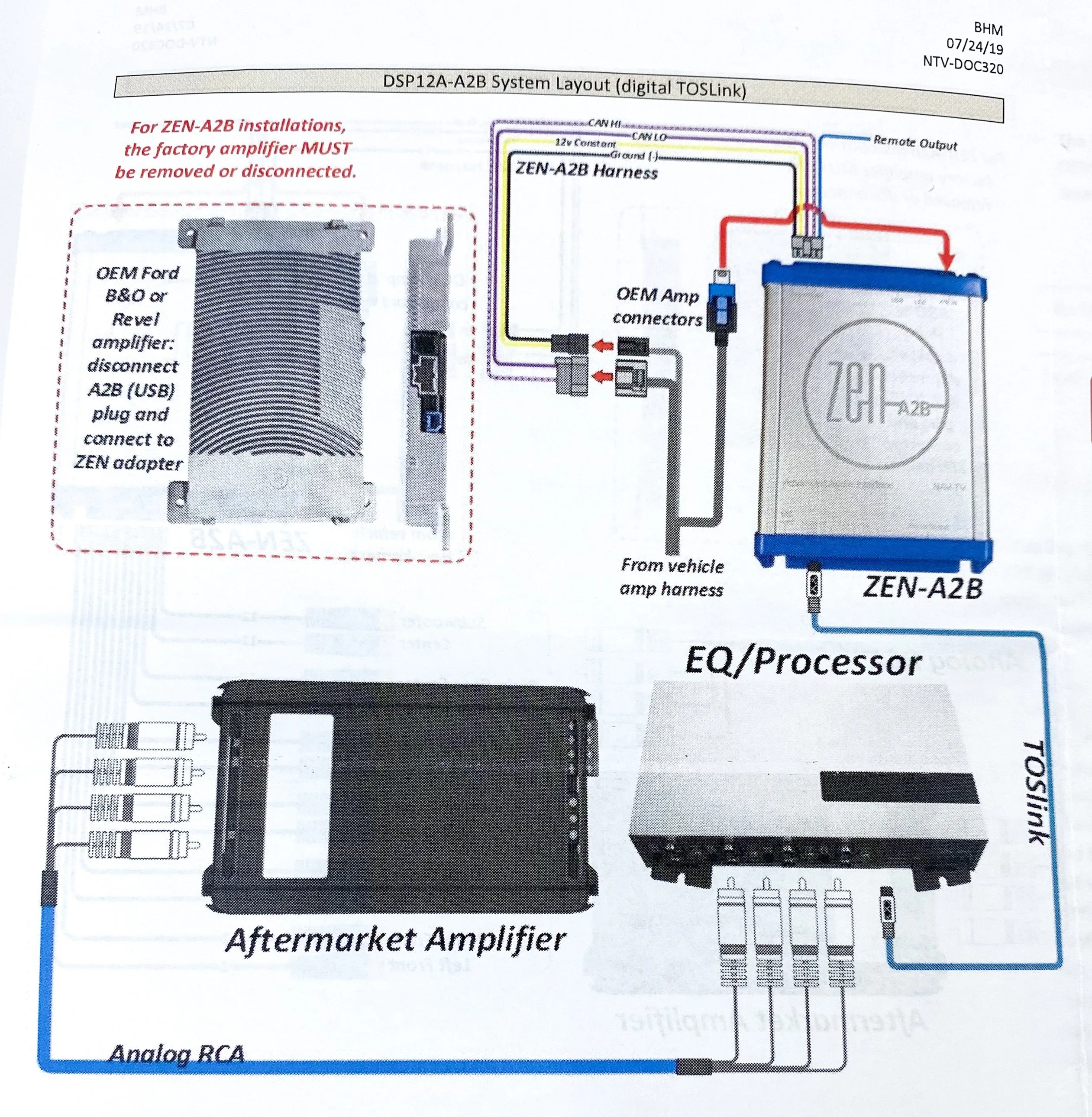

Output Digital Outputs: TOSLink
Digital Outputs supported: 24bit/48kHz
Frequency Response (digital): 18Hz – 24kHz Analog Outputs: 6 channels (RCA)
S/N Ratio (analog): 114dB
Frequency Response (analog): 18Hz – 24kHz THD N @ -1dBFS -94dB
DAC 48kHz 32bit
DSP 32bit Floating Point
