Product Details ＋

AHRI Certified Match: 214860203

Standard Features

Removable grille style top style grill design compatible with UL 60335-2-40
Heavy-gauge galvanized-steel cabinet
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Steel louver coil guard
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

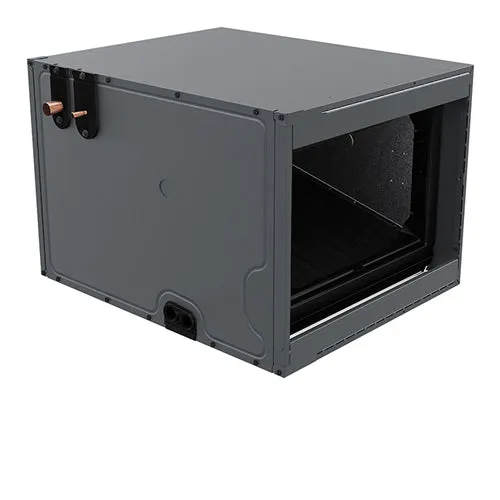

All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
CAPTA and CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Vertical and horizontal models available
21" depth for easier attic access
CAPTA and CHPTA models include a single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pans featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified; ETL listed

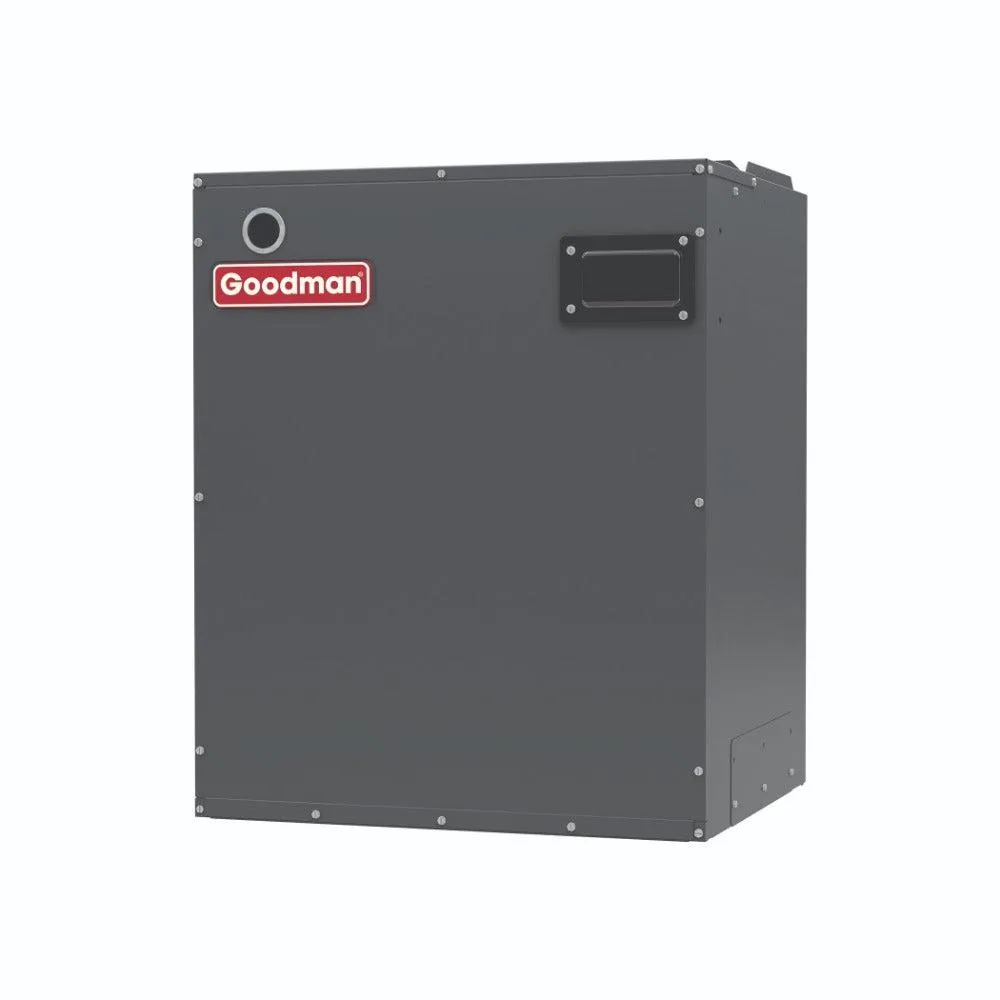

Variable-speed ECM blower motor
Integrated communicating ComfortBridge Technology
Commissioning and diagnostics via on-board Bluetooth with the CoolCloud phone and tablet application
Advanced configuration of the airflow and tonnage in communicating mode
Provides constant CFM over a wide range of static pressure conditions independent of duct system
CFM indicator
Fault recall of six most recent faults
Provides adjustable low CFM for efficient fan-only operation
Improved humidity and comfort control
Built-in compatibility with multi-stage heat pump and cooling applications
UL 60335 2-40 Compliant
AHRI certified; ETL listed

Blower section usable as electric heater
Horizontal or vertical configuration capabilities
21 depth for easier attic access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Cabinet air leakage less than 2% at 1.0 inch H?0 when tested in accordance with ASHRE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H?0 when tested in accordance with ASHRE standard 193
Field Installed 3 kW 20 kW electric heater kits available
