.Viking 22TB-IP Features:

• SIP compliant (see page two for list of compatible SIP servers and IP phone systems)
• Up to 28 second ID announcement (uploaded from wave file or recorded live)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Add an optional blue, green, red or amber strobe light
• Blue call status LED indicator
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
• Selectable auto-answer feature for monitoring
• Autoprovisioning via Viking programming software
• Built-in high efficiency 6 Watt class D amplifier
• Can drive up to 5 external analog speakers for greater coverage
• Relay for activating door locks, strobe lights, external amplifiers, etc
• SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Hangs up on: busy signal, time-out, or touch tone command
• Network remote speaker volume control

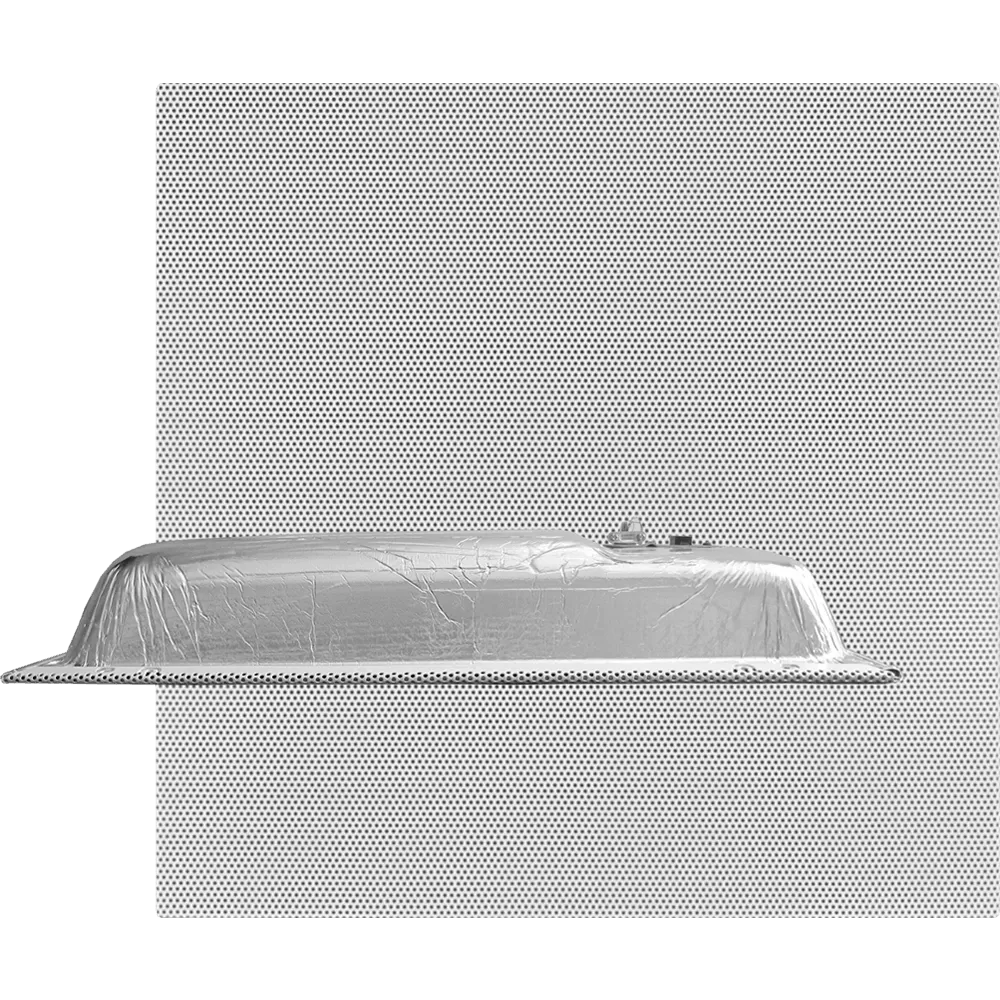

• Mounting: Drop mounts into 2 x 2 or 2 x 4 suspended ceilings
• Heavy duty back box protects speaker and circuitry against plenum dust
• Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
• Diagnostics for testing microphone, speaker and relay
• Programmable pre-page alert tone

• Viking 22TB-IP Applications:

  • Amplified SIP endpoint or multicast IP paging for: schools, hospitals,retail stores, office spaces, etc.
  • Provide background music and sound masking
  • Make standard and/or emergency SIP phone calls via hands free talk-back speaker
  • Background music and emergency calls for elevator applications retail stores, office spaces, etc.
  • Mount in the ceiling above the door and use the existing door bell switch to activate a call

Viking 22TB-IP Specifications:

• Power: PoE class 3 (<13 Watts)
• Dimensions: 23.75” x 23.75” x 3.75” (603.25mm x 603.25mm x 95.25mm)
• Operating Temperature: -40°F to 140°F (-40° C to 60° C)
• Humidity: 5% to 95% non-condensing
• Audio Codecs: G711u, G722* and G711a*
• Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over
• Connections: (1) RJ45 10/100 Base-T, (1) 8 position terminal block
• Sensitivity: 96dB / 1W / 1M S.P. Level
• Maximum Output Level: 105 dB SPL @ 1M (with no additional Speakers connected)
• Amplifier: 6 Watt class D

*NOTE: The 22TB-IP does not support multicast paging using the G722 or G711a Codec.
