Product Details
＋
DESCRIPTION
Waldmann Part Number: 113045000-00580702

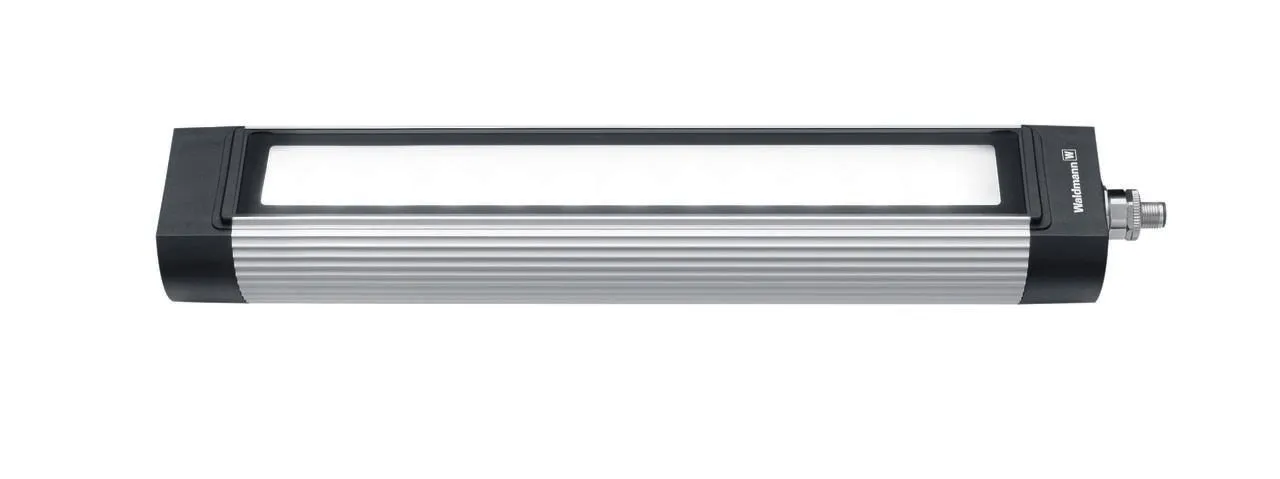

Waldmann's MACH LED PLUS.seventy is the ideal upgrade from fluorescent tube lights to LED linear machine lighting. Its highly efficient LED technology offers at least 60,000 hours of maintenance-free operation. MACH LED PLUS.seventy was designed as a high-tech transition from fluorescent tube lights and fits easily into existing brackets and mounting options. Flexible adapter options and the M12 plug connection ensure fast and easy integration as well. There is no doubt that MACH LED PLUS is considered one of the most sustainable machine lights on the market today.
*Brackets Sold Separately, See Accessories
- ECO Version; Less powerful light than the High-Output Versions
- 60,000 hour maintenance-free LED light source
- Robust anodized aluminum housing and 4mm safety glass
- Sealed IP67 Rated - highly resistant to coolants and lubricants
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | MACH LED PLUS.70 |
| Model: | MQAL 12S |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 14.5 |
| Width (in): | 2.75 |
| Bulb: | LED |
| Mounting Type: | Bracket |
| Wattage: | 7 |
| Lumens: | 500 |
| Color Temperature: | 5000K |
| Color Rendering Index (CRI): | 85 |
| Lens Material: | Glass |
| Lens Style: | Satine |
| Protection Index: | IP67 |
| Operation: | Without Switch |
| Connection: | 16' Cord with free stranded wires |
| Certification: | ETL/cETL Approved |
| Product Warranty: | 5 Years |
ACCESSORIES
Mounting Options:
|
MOUNTING OPTION: End Bracket, Adjustable, /- 65º, Pair |
|
|
MOUNTING OPTION: Clip Bracket, Adjustable, /- 30º, Each |
|
|
MOUNTING OPTION: Protective Cap Set (not for use with end brackets) |
|
Power Options:
|
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz |
|
Connection Options:
|
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, straight (included with 24V models) |
|
|
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, straight (included with 120V models) |
|
|
CONNECTOR/CABLE: 16' cord with 4-pin, A-coded for 24V, M12 connector, angled |
|
|
CONNECTOR/CABLE: 16' cord with 4-pin, S-coded for 120V, M12 connector, angled |
|
|
CONNECTOR: M12 Connector, A-coded, 4 pin, female (included for 24V) |
|
|
CONNECTOR: M12 Connector, A-coded, 4 pin, male (for 24V) |
|
|
CONNECTOR: M12 Connector, S-coded, 4 pin, female (included for 120-230V) |
|
|
CONNECTOR: M12 Connector, S-coded, 4 pin, male (for 120-230V) |
|
